Ø 86 mm aluminium (up to 9 m)
Ø 102 mm aluminium (up to 14 m)
SunFurl RE and RES
Electric awning
Flexibility in all dimensions
Electric sun sail
The electric rollable awning
Maximum ease of use, maximum safety
The electrically operated RE awning from SunFurl offers fully automated weather control via sensors, meaning that no operating personnel are required. Thanks to maximum tension when extended, the system guarantees excellent wind stability and optimum rainwater drainage, provided the sail has the correct gradient. The highlight of the SunFurl RE system lies in the ingenious tensioning technology: high tensioning force when extended and protection of hardware, fabric and drive when retracted - an advantage that many other systems do not offer. Wind and sun sensors control the sail automatically and guarantee maximum safety, even when you are away. The sail can be conveniently operated using a hand-held radio transmitter. The system protects against gusts of wind by automatically retracting if the load is exceeded. Sail areas of up to 100 m² can be realised without any problems. SunFurl produces everything - from the hardware to the sail - in Germany!
Video RE
RE & RES awning video
Videos about SunFurl RE and RES systems - Experience our awnings in action and take a look behind the scenes of our production. Highest quality, 100% Made in Germany.
Awning colours
SunFurl awnings type RE / RES are available in the colours shown. Here you can find more information about fabric and colours.
Sailing fabric HydroSol270 colors
Lava Grey Linen
HS 1016
Grey
HS 1017
Charcoal Grey
HS 1018
Light Grey
HS 1019
Silver Grey
HS 1020
![[Translate to GB:] Segelstoff HS2010 Bianco](/fileadmin/sunfurl/stoffe/HS2010-Bianco.jpg "[Translate to GB:] Segelstoff HS2010 Bianco")
Bianco
HS 2010
Akoya Linen
HS 3016
![[Translate to GB:] Segelstoff HS3015 Champagner](/fileadmin/sunfurl/stoffe/HS3015-Champagner.jpg "[Translate to GB:] Segelstoff HS3015 Champagner")
Champagner
HS 3015
![[Translate to GB:] Segelstoff HS1015 Taupe](/fileadmin/sunfurl/stoffe/HS1015-Taupe.jpg "[Translate to GB:] Segelstoff HS1015 Taupe")
Taupe
HS 1015
Beige Brown
HS 3017
![[Translate to GB:] Segelstoff HS4013 Bordeaux](/fileadmin/sunfurl/stoffe/HS4013-Bordeaux.jpg "[Translate to GB:] Segelstoff HS4013 Bordeaux")
Bordeaux
HS 4013
![[Translate to GB:] Segelstoff HS8010 Orange](/fileadmin/sunfurl/stoffe/HS8010-Orange.jpg "[Translate to GB:] Segelstoff HS8010 Orange")
Orange
HS 8010
![[Translate to GB:] Segelstoff HS5011 Citron](/fileadmin/sunfurl/stoffe/HS5011-Citron.jpg "[Translate to GB:] Segelstoff HS5011 Citron")
Citron
HS 5011
![[Translate to GB:] Segelstoff HS6011 Pacific](/fileadmin/sunfurl/stoffe/HS6011-Pacific.jpg "[Translate to GB:] Segelstoff HS6011 Pacific")
Pacific
HS 6011
![[Translate to GB:] Segelstoff HS7012 Limette](/fileadmin/sunfurl/stoffe/HS7012-Limette.jpg "[Translate to GB:] Segelstoff HS7012 Limette")
Limette
HS 7012
Electric retractable awnings from SunFurl
Frequently asked questions
How does an electric awning work?
Electric awnings from SunFurl use wind and sun sensors for automatic adjustment. These retractable awnings offer the advantage of automatically retracting in strong winds, providing efficient protection. Compared to manual awnings, electric models offer increased comfort and safety.
Can electric awnings be integrated into smart home systems?
Yes, the electrically operated and retractable awnings from SunFurl can be seamlessly integrated into smart home systems. This makes it easy to control the awning from inside and automatically adjusts the awning to the current weather conditions.
How can electric awnings be operated?
SunFurl awnings, both electric and retractable, can be conveniently controlled using a hand-held radio transmitter. This enables individual adjustment of the sail and is a user-friendly alternative to manual variants.
What personalized design options does SunFurl offer for electric awnings? SunFurl offers a variety of custom design options for its electric and retractable awnings. These sails can be adapted to the aesthetic requirements of each individual customer to ensure optimal integration into the respective outdoor area.
How to install and maintain electric awnings
Installing and maintaining SunFurl electric awnings requires specialist knowledge. Regular inspection and maintenance ensure the longevity and functionality of the retractable awning.
What safety functions are integrated into SunFurl electric awnings? SunFurl electric awnings are equipped with sensors that react to sudden changes in the weather and automatically retract the retractable awning if necessary. This function increases the safety and reliability of the sun protection system.How does the fully automatic drive improve the functionality of SunFurl awnings? The fully automatic drive of SunFurl awnings significantly improves their functionality. This innovative system enables the awnings to adapt independently to changing sun conditions. In strong sunlight, the awnings unfold fully automatically to provide optimum protection and comfort. This intelligent drive ensures efficient use of the awning by reacting precisely and in good time to changes in the sunlight. As a result, SunFurl awnings not only offer protection from the sun, but also increased ease of use.
Safety and comfort are the top priorities with this electrically rollable awning system. Both sails have the same fabric tension. When extended, the fabric tension is high; when rolled up, the fabric and line tension are reduced. Operation is fully automatic thanks to the weather control system. Sail areas of up to 100 m² can be realised effortlessly. A multiple arrangement in a row or surface is possible without any problems. The system can be integrated into an existing building control system. Here you will find an overview of all SunFurl components

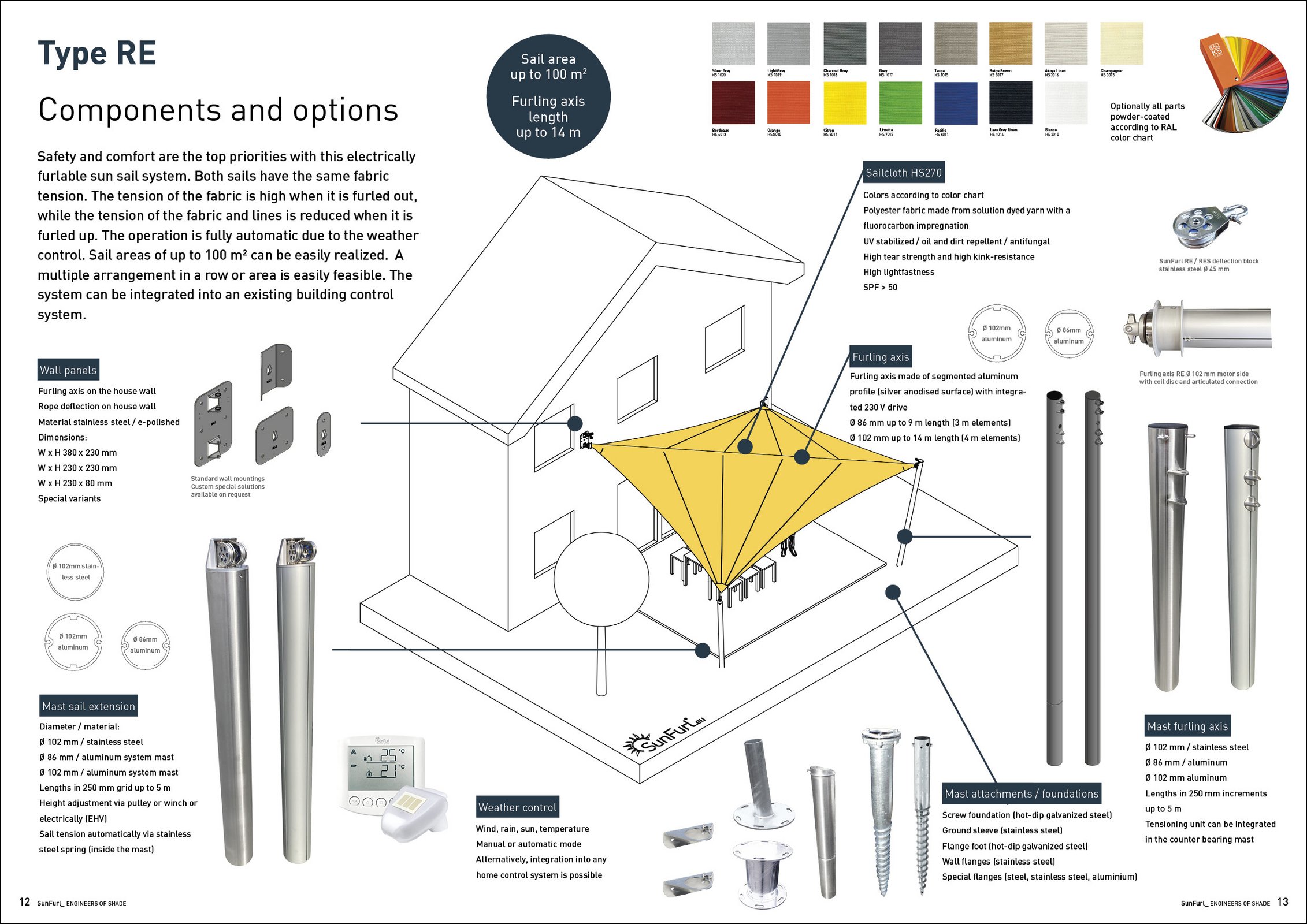

Type RE
- Winding axle on house wall
- Line linkage on house wall
- Material stainless steel / polished
- Dimensions:
WxH 380 x 230 mm
WxH 230 x 230 mm
WxH 230 x 80 mm - Special variants
- Optionally integrated: Sensor for weather control
- Diameter / material:
Ø 102 mm / stainless steel
Ø 86 mm / aluminium system mast
Ø 102 mm / aluminium system mast - Lengths in 250 mm increments up to 5 m
- Height adjustment via pulley block or winch or electrically (EHV)
- Automatic sail tensioning via stainless steel spring (inside the mast)
- Colours according to colour chart
- Polyester fabric made from spun-dyed yarn with fluorocarbon impregnation
- UV-stabilised / oil and dirt repellent / antifungal
- High tear resistance and high crease resistance
- High light fastness
- Light protection factor > 50
- Winding axis made of segmented aluminium profile (silver anodised surface)
- with integrated 230 V drive
- Ø 86 mm up to 9 m length (3 m elements)
Ø 102 mm up to 14 m length (4 m elements)
- Screw foundation (hot-dip galvanised steel)
- Ground socket (stainless steel)
- Flange base (hot-dip galvanised steel)
- Parapet flanges (stainless steel)
- Special flanges (steel, stainless steel, aluminium)
- SunFurl RE / RES deflection block
- Stainless steel Ø 45 mm
- Wind, rain, sun, temperature
- Manual or automatic mode
- Alternative integration into any home control system possible
- The sensor is integrated into a wall panel,
the manual control can be moved freely like a remote control
- Ø 102 mm / stainless steel
Ø 86 mm / aluminium
Ø 102 mm aluminium - Lengths
in 250 mm increments up to 5 m - Tensioning technology can be integrated in the counter bearing mast
- Winding axle on house wall
- Line linkage on house wall
- Material stainless steel / polished
- Dimensions:
WxH 380 x 230 mm
WxH 230 x 230 mm
WxH 230 x 80 mm - Special variants
- Optionally integrated: Sensor for weather control
- Diameter / material:
Ø 102 mm / stainless steel
Ø 86 mm / aluminium system mast
Ø 102 mm / aluminium system mast - Lengths in 250 mm increments up to 5 m
- Height adjustment via pulley block or winch or electrically (EHV)
- Automatic sail tensioning via stainless steel spring (inside the mast)
- Colours according to colour chart
- Polyester fabric made from spun-dyed yarn with fluorocarbon impregnation
- UV-stabilised / oil and dirt repellent / antifungal
- High tear resistance and high crease resistance
- High light fastness
- Light protection factor > 50
- Winding axis made of segmented aluminium profile (silver anodised surface)
- with integrated 230 V drive
- Ø 86 mm up to 9 m length (3 m elements)
Ø 102 mm up to 14 m length (4 m elements)
- Screw foundation (hot-dip galvanised steel)
- Ground socket (stainless steel)
- Flange base (hot-dip galvanised steel)
- Parapet flanges (stainless steel)
- Special flanges (steel, stainless steel, aluminium)
- SunFurl RE / RES deflection block
- Stainless steel Ø 45 mm
- Wind, rain, sun, temperature
- Manual or automatic mode
- Alternative integration into any home control system possible
- The sensor is integrated into a wall panel,
the manual control can be moved freely like a remote control
- Ø 102 mm / stainless steel
Ø 86 mm / aluminium
Ø 102 mm aluminium - Lengths
in 250 mm increments up to 5 m - Tensioning technology can be integrated in the counter bearing mast
Type RES (E2)
- Connection winding axle to house wall
- Material stainless steel / polished
- Dimensions:
WxH 230 x 80 mm
Special variants - Optionally integrated: Sensor for weather control
- Diameter / material:
Ø 86 mm / aluminium system mast Ø 102 mm / aluminium system mast - Lengths in 250 mm increments up to 5 m
- Height adjustment via pulley block or winch or electrically (EHV)
- Automatic sail tensioning and line storage via a gas spring (inside the mast)
- Wind, rain, sun, temperature
- Manual or automatic mode
- Alternative integration into any home control system possible
- The sensor is integrated into a wall panel,
the manual control can be moved freely like a remote control
- Colours according to colour chart
- Polyester fabric made from spun-dyed yarn with fluorocarbon impregnation
- UV-stabilised / oil and dirt repellent / antifungal
- High tear resistance and high crease resistance
- High light fastness
- Light protection factor > 50
- Winding axis made of segmented aluminium profile with integrated 230V drive (surface silver anodised)
- When mounted horizontally on a wall (E1 and E2 arrangement), the reduced wavelengths apply
Ø 86 mm up to 6 m length
Ø 102 mm up to 8 m length
- The sail can be lowered on the masts via a height adjustment to follow the course of the sun or to define the rainwater run-off.
- Buoys (4-way or 8-way reduction), a winch system or an electric version (EHV) are available. The EHV can be conveniently operated via the display of the awning control system.
- Height adjustment can also be integrated into the 2nd mast.
- Screw foundation (hot-dip galvanised steel)
- Ground socket (stainless steel)
- Flange base (hot-dip galvanised steel)
- Parapet flanges (stainless steel)
- Special flanges (steel, stainless steel, aluminium)
- Connection winding axle to house wall
- Material stainless steel / polished
- Dimensions:
WxH 230 x 80 mm
Special variants - Optionally integrated: Sensor for weather control
- Diameter / material:
Ø 86 mm / aluminium system mast Ø 102 mm / aluminium system mast - Lengths in 250 mm increments up to 5 m
- Height adjustment via pulley block or winch or electrically (EHV)
- Automatic sail tensioning and line storage via a gas spring (inside the mast)
- Wind, rain, sun, temperature
- Manual or automatic mode
- Alternative integration into any home control system possible
- The sensor is integrated into a wall panel,
the manual control can be moved freely like a remote control
- Colours according to colour chart
- Polyester fabric made from spun-dyed yarn with fluorocarbon impregnation
- UV-stabilised / oil and dirt repellent / antifungal
- High tear resistance and high crease resistance
- High light fastness
- Light protection factor > 50
- Winding axis made of segmented aluminium profile with integrated 230V drive (surface silver anodised)
- When mounted horizontally on a wall (E1 and E2 arrangement), the reduced wavelengths apply
Ø 86 mm up to 6 m length
Ø 102 mm up to 8 m length
- The sail can be lowered on the masts via a height adjustment to follow the course of the sun or to define the rainwater run-off.
- Buoys (4-way or 8-way reduction), a winch system or an electric version (EHV) are available. The EHV can be conveniently operated via the display of the awning control system.
- Height adjustment can also be integrated into the 2nd mast.
- Screw foundation (hot-dip galvanised steel)
- Ground socket (stainless steel)
- Flange base (hot-dip galvanised steel)
- Parapet flanges (stainless steel)
- Special flanges (steel, stainless steel, aluminium)
Variants
| System type | Description / area of application | Illustration |
|---|---|---|
| Type RE-A1 2 x wall / 2 x mast |
| |
| Type RE-B1 1 x wall / 3 x mast |
| |
| Type RE-C1 3 x wall / 1 x mast (inside corner) |
| |
| Type RE-D1 0 x wall / 4 x mast (freestanding) |
| |
| Type RES-E1 2 x wall / 1 x mast (triangle) |
| |
| Type RES-E2 2 x wall / 2 x mast (trapezoid) |
| |
Advantages of RE & RES systems
- Electrically rollable awning system (automatic and manual operation)
- Weather control (wind, rain, sun, temperature)
- Comfort and safety
- Large sail areas can be realised
- Systems can be combined in rows and surfaces
- Tensioning technology with robust and maintenance-free stainless steel spring
- High sail tension / good wind stability / good rainwater drainage
